Automatic Glass Bottle Mango Puree Basil Seed Filling Capping Machine
Quick detail
| Project name | Juice filling machine |
| Machine structure | 3 in 1 washing filling capping machine |
| Bottle type | Glass bottle |
| Cap type | Twist off cap |
| Juice type | Fresh juice / concentrate juice / Fruit puree |
| Juice temperature | Hot temperature |
Description
1). The raw water will be purified and sterilized after passing through the water treatment system, and will be stored in the purified water storage tank;
2). The juice will be prepared by the juice preparation system, the prepared juice is stored in the insulation tank (for heat preservation) temporarily;
3). Automatic heat resistance PET bottle blow molding machine is connected with the water filling machine by the Air conveyor;
4). Prepared juice will be pumped into the juice filling machine; At the same time, empty bottles pass through the rinsing, filling and capping 3-in-1 monoblock, the bottles will be rinsed, filled and capped.
5). Bottled water goes out from the water filling machine and will be transferred to the bottle over-turn sterilizing machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing machine, then the bottles will be transferred to the bottle cooling machine;
6). The bottles are getting dried after passing through the blowing dryer, and the dried bottle will go to the labeling machine and PE film shrink wrapping machine;
7). The packed bottle water will come out from the PE film shrink wrapping machine.
Samples : Project: 4500BPH Juice production line (machine list)
1, Juice filling system
| Machine description | Model | Size | Power | Qty. |
| mm | kw |
| Monoblock 4 in 1 washer-filler-capper machine with CIP connector | RCGF12-12-12-6 | 3500*2800*2400 | 12.79kw | 1 set |
| Lubrication system | / | / | 1suit |
| Belt conveyor | SYS-1 | 6m | 1 set |
| Light checker | DJ-1 | 1m | 1 set |
| Recycling system | Including: return pump, vacuum pump, return tank and high position tank (mixing tank) | 1suit |
| Cap elevator | / | / | 0.43kw | 1set |
2, Packing system
| Machine description | Model | Size | power | Qty. | |
| mm | kw | |
| Warming tunnel / cooling tunnel | PL-1200 | 13000*2200*1780 | 10.05kw | 1 | |
| Bottle dryer | CG-1000 | 1100*670*1780 | 7.5kw * 2sets | 2sets | |
| Automatic sleeve labeling machine | TB-150 | 2000*850*2000 | 26.78kw | 1set | |
| Steam shrink tunnel | SB-800 | 1800*450*1850 | 1set | |
| Steam boiler | 24KW | 630*550*1000 | 1set | |
| Ink date printer Brand: America videojet | VJ-1210 | 345*285*541 | 0.01kw | 1set | |
| Automatic PE film shrink packing machine | 10packs/min | 6000*1100*2100 | 27kw | 1set | |
| Air compressor | / | / | / | 1set | |
Video for ref
More videos, pls go to download: Video link in youtube.pdf

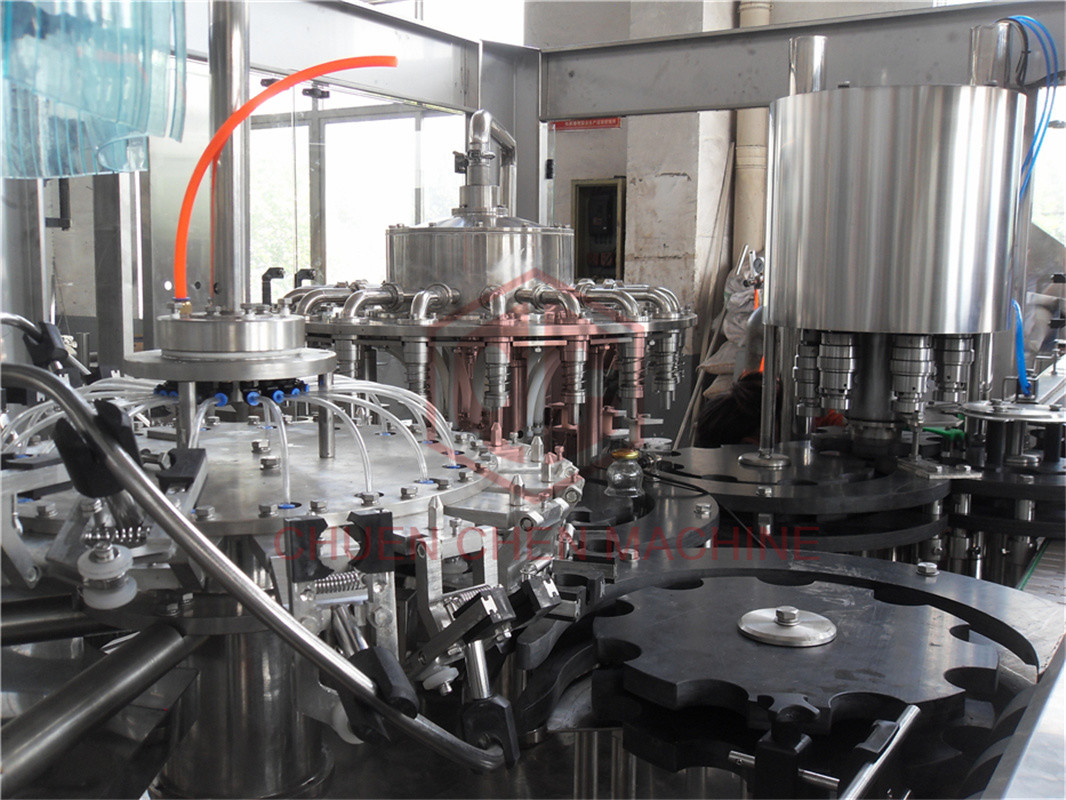

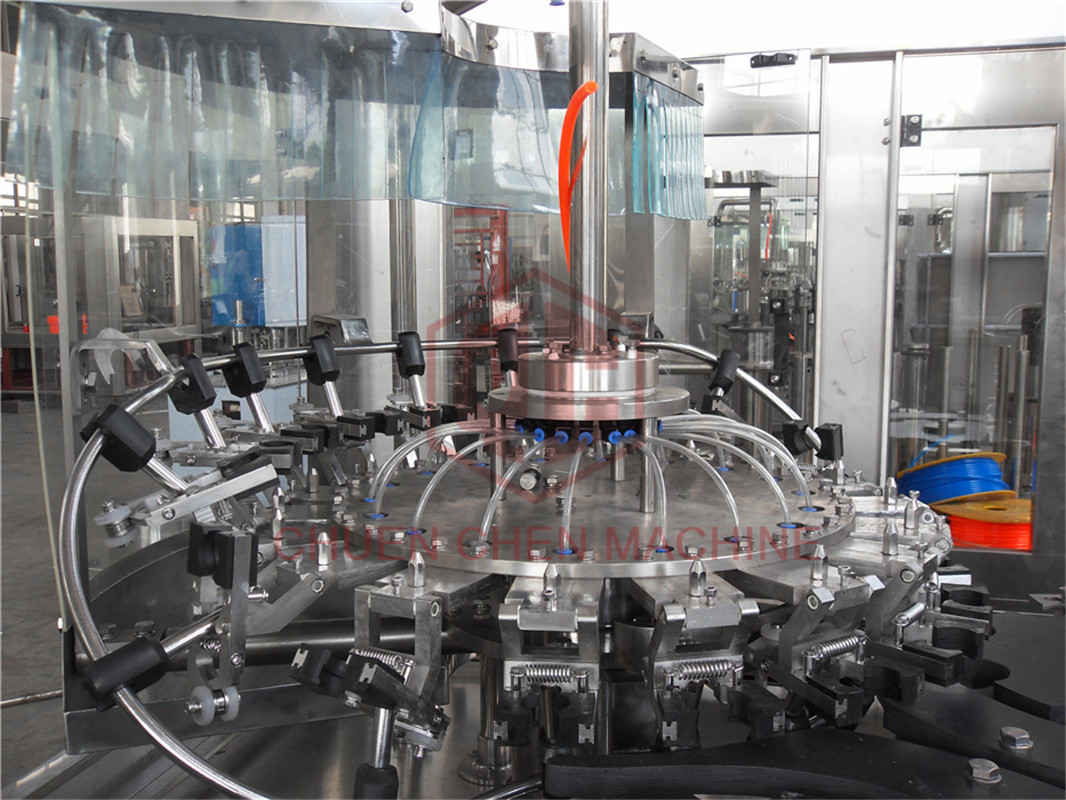

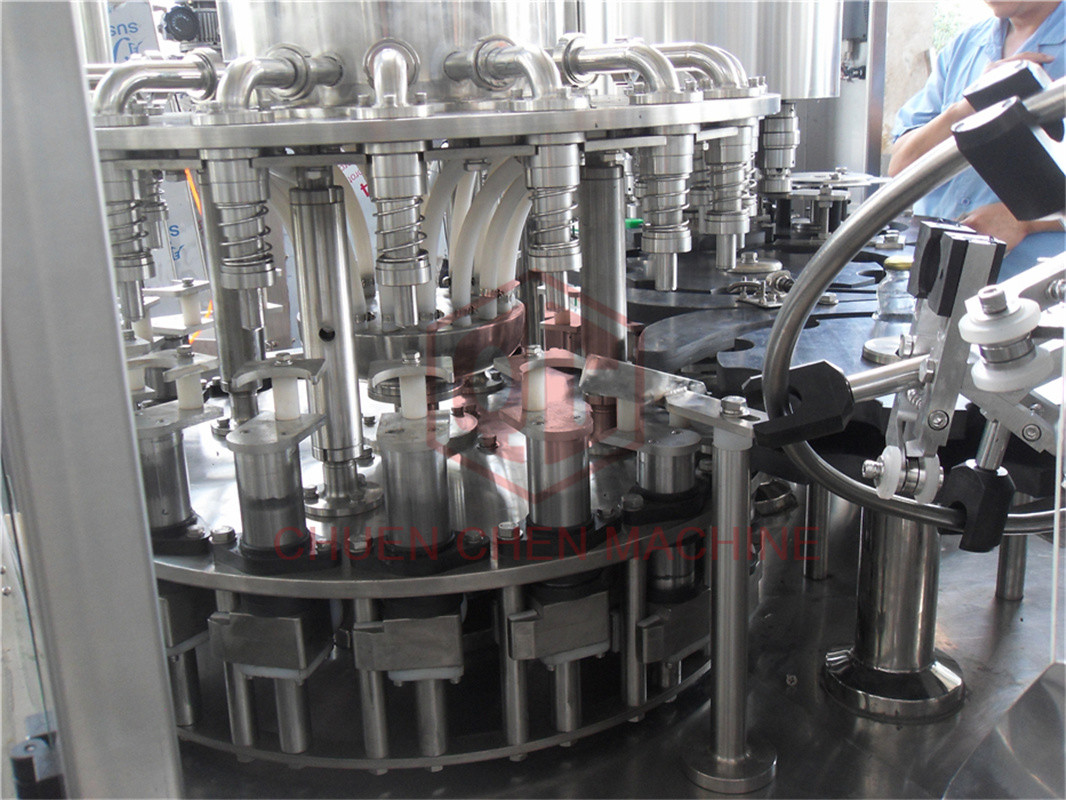

More photos
