Star Wheel Transmit Glass Bottle Washing Filling Capping Machine
General info
| Machine type | Monoblock Washing - filling - capping equipment |
| Filling liquid | Juice and non-carbonated liquid |
| Beverage type | Hot liquid |
| Capacity | 0 - 6000BPH / Customized basing on the requirement |
| Filling temperature | around 85-90 degrees celsius |
| Filling pressure | Gravity |
| Filling range | Glass bottle 500ml |
| Cap type | Twist off caps |
Machine description
The RGCF serious filling machine is designed to fill water, juice and non-carbonated liquid into plastic bottle, glass bottles and aluminum can. Please note that plastic bottle, glass bottle and aluminum can can not adopt in same filling machine.
The filling machine is customized basing on the production capacity per hour, filling liquid, bottle types and caps. Different liquid, bottles and caps are different, the filling valve, filling nozzle, bottle carry system are totally different.
The juice production line from A to Z will include:
1, Water treatment system: Pretreatment, RO unit, Sterilizing machine, Water storage
2, Juice processing line: Syrup melting, mixing, Filter, Homogenizer, degassing, sterilizing, juice storage
3, Juice filling machine: Botlte washing, juice filling, cap sealing, cap sterilizing
4, Bottled juice pasteurizer: warming tunnel
5, Bottled drink packing machine: labeling machine, date printing, shrink wrapping
Characters
| Washing-Filling-Capping part | Washing unit
* All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
* 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
* 304/316 stainless steel washing pump |
| Filling unit
* Filling volume adjustable in fine rank, same liquid level after filling
* All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
* 304/316 Stainless steel high precision filling nozzle |
| Capping unit
* Automatic stop when lack of bottle
* Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping |
| Conveyor system | Belt conveyor system
1, Single row of conveyor: engineering plastic belt or stainless steel belt
2, Multi row of conveyor: engineering plastic belt or stainless steel belt
3, Conveyor motors: speed adjustable or stable speed with converter
4, Turn conveyor
5, Water accumulation tray
6, Cable try |
| Air conveyor system
1, air blower
2, air filter screem
3, air conveyor tunnel |
| Auxiliary machines | 1, Cap elevator
2, Cap sorting machine
3, Online cap washing tunnel
4, Bottled juice pasteurizer tunnel |
Technical specification
| Model | RCGF 24-24-8 |
| Capacity | 6000 BPH for 500ml bottle |
| Suitable bottle | Glass bottle |
| Bottle neck | Must be kept the same |
| Filling liquid | Juice and non-carbonated drink |
| Filling temperature | Around 85-90 degrees Celsius |
| Filling pressure | Gravity filling |
| Washing head | 24 |
| Filling head | 24 |
| Capping head | 8 |
| Air consumption | 0.5CBM / min |
| Air pressure | 6 bar |
| Total power | 5 kw |
| Voltage | 380V 3phase 50HZ / Customize |
How to get quotation?
Please write to us with below information for getting detailed quotation sheet quickly:
- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;
FAQ
Q: Do you provide customized service
A: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q: How long time for installation?
A: According your machines order, we will send one or two engineers to your plant,it will take about 10 days to 25 days.

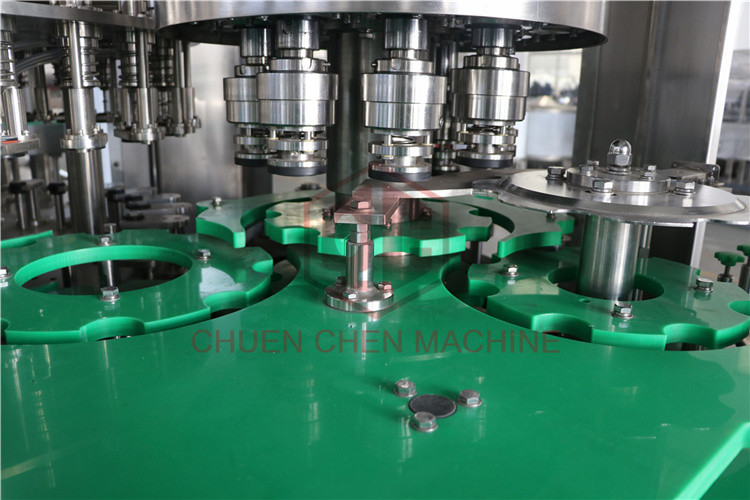

Detailed photo for ref
