Automatic 4 in 1 Water Bottle Filling Machine Model 24-24-24-8 Plastic
General information
| Machine type | Rotary type 4 in 1 filling machine (two steps of washing) |
| Capacity | Customized basing on the requirement |
| Filling range | 330ml-2000ml |
| Bottle type | PETbottles |
| Cap type | Plastic screw caps |
| Supper supply | 380V 3 phase 50/60HZ or Customize |
| HS code | 8422301090 |
Description
Bottle water filling machine is full-automatic multiple-function washing, filling, capping unit. It is used in washing, filling, capping all kinds of non-gas drink, such as vinegar, wine, mineral water, pure water.
The complete water bottle filling and packing line include:
Air conveyor (bottle feeding) > Monoblock washing filling capping machine > Light Checker > Labeling machine (shrink labeling machine / stick labelingmachine) > Date printer (ink printing / laser printing) > Final package machine (shrink wrapping / carton packing)
Technical specification
| Model | CGF 24-24-24-8 |
| Capacity | 8000-12000 BPH for 500ml bottle |
| Suitable bottle | PET round or square |
| Bottle diameter | No limitation (we can customize) |
| Bottle height | No limitation (we can customize) |
| Air consumption | 0.5 M3 / min |
| Air pressure | 6-8 bar |
| Machine size | 3100 * 2300 * 2800 mm |
| Total power | 5.57 kw |
Features

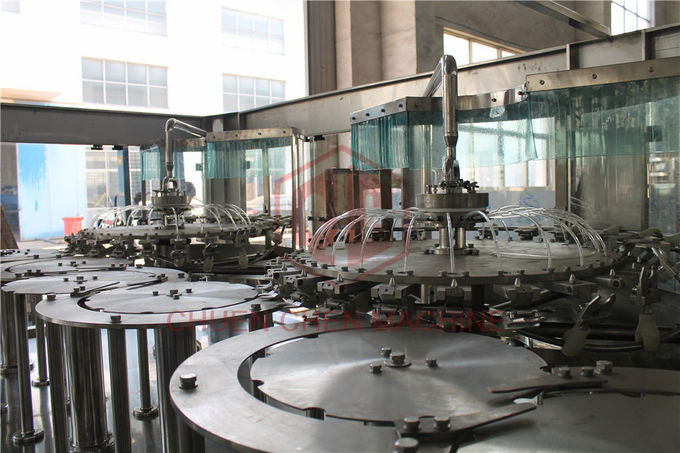

| Washing part | The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable |
| Filling part | Rotary wheel fully made of stainless steel SUS 304. Gravity filling method. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling |

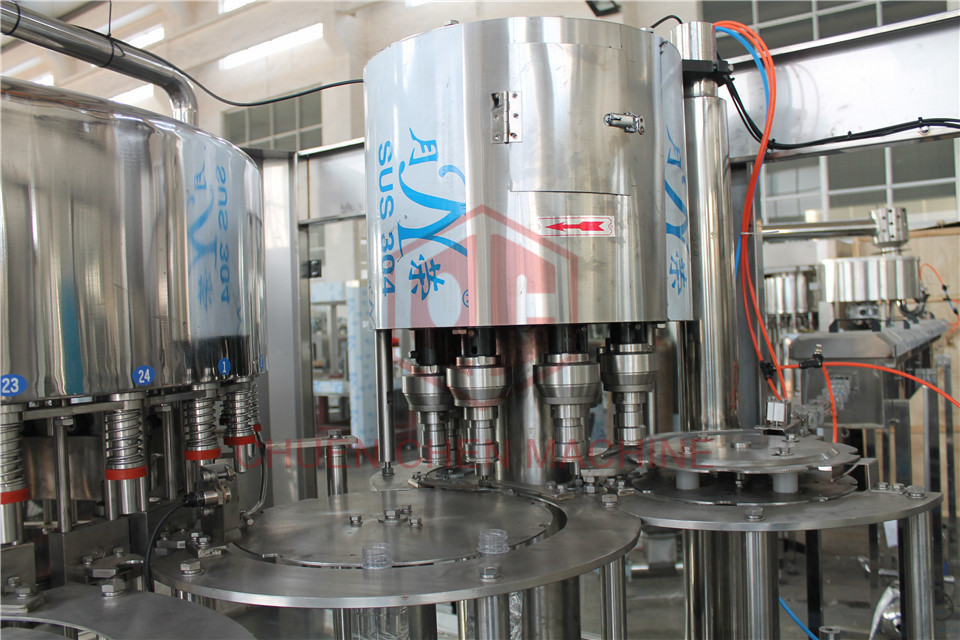

| Capping part | Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch. Centrifugal way of cap arranging is adopted to reduce damage of caps |
Electric configuration
| PLC & Touch screen | Siemens / Mitsubishi | Germany / Japan |
| Converter | Siemens / Mitsubishi / Schneider | Germany / Japan / France |
| Power | Schneider | France |
| Contactor | Schneider | France |
| Relay | Schneider | France |
| Light sensor | Omron / Autonics | Japan / Korea |
Conveyor system
Air conveyor: Feeding plastic bottle to filling machine; it includes:
1, air blower
2, air filter screen
3, air conveyor tunnel
The belt conveyor system include:
1, Single row of conveyor: engineering plastic belt or stainless steel belt
2, Multi row of conveyor: engineering plastic belt or stainless steel belt
3, Conveyor motors: speed adjustable or stable speed with converter
4, Turn conveyor
5, Water accumulation tray
6, Cable try
Packing system
This system includes sleeve labeling machine, steam shrink tunnel, steam generator, bottle dryer and shrink wrapping machine.
Each machine can be customize basing on the labeling manner, packing format and production capacity.
