Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor

Name: Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
Brand: Ellison
Price: 1 USD

Buy cheap Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor product

Brand Name : Ellison

Model Number : CGF24-24-8

Certification : CE/ BV / ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 30 working days

Packaging Details : Wooden case or pallet package

Machine structure : 3 in 1 filling machine

Filling liquid : Spring water

Capacity : 8000-10000BPH

Suitable bottle : Square bottle

Filling range : 250ml-2000ml

Bottle delivery : Air conveyor and belt conveyor

PLC/Touch screem : Siemens

HS code : 8422301090

Contact Now

Medium Size Square Bottle Water Filling Machine Automatic Type

General information

Machine type	Automatic 3 in 1 Washing filling capping unit
Filling material	Spring water
Production capacity	8000-10000BPH / Basing on the requirement
Filling range	330ml-2000ml
Bottle type	Square bottles
Cap type	Plastic screw caps
HS Code	8422301090
Power supply	380V 3phase 50/60HZ
Payment method	30% deposit; 70% before shipment
Engineer	Engineers are available to be overseas for machine set up

Description

Nowadays the monoblock filling machine is becoming more and more popular due to its stable filling speed, precision filling level, high capacity, compact structure and less changeovers etc. The machines are designed basing on the requirements such as bottle type, cap type, production capacity etc. Different factorys will have different structures, but the working principles are the same. The monoblock filling machine has been the trend to replace the old type of filling machine (single washing machine, filling machine, capping machine) gradually.

Characteristics

Machine structure	New type: round corner, Arm control Monoblock 3 in 1 washing - filling - capping unit
Material	Water touch parts are stainless steel 304 or 316L All the bearing sets are made by stainless steel 304 All the parts are manufactured in more precise Bushes are changed to imported brand which is free lubricate
Each unit features	Washing Part: 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing Filling Part: All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean Capping Part: No bottle no capping
Additional function	Install central lubrication system Automatic lifting system for different height

Technical specification

Model	CGF8-8-3	CGF12-12-4	CGF16-16-5	CGF18-18-6	CGF24-24-8
Capacity (@500ml bottle)	2000BPH	3000-4000BPH	4000-6000BPH	6000-8000BPH	8000-12000BPH
Bottle type	Round or square PET bottle
Bottle diameter	50-115 mm
Bottle height	160-320 mm
Air consumption	0.3-0.7Mpa
Air pressure	5-8bar
Washing medium	Aseptic water
Pressure of washing	>0.06Mpa <=0.2Mpa
Power (kw)	3	4.4	4.4	4.4	5.2
Weight (kg)	3000	3200	4000	4500	6500

Model	CGF32-32-10	CGF40-40-12	CGF50-50-12	CGF60-60-15
Capacity 500ml	13000-15000	16000-18000	20000-24000	25000
Bottle type	PET Circular or square
Bottle diameter	50-115 mm
Bottle height	160-320 mm
Air consumption	0.3-0.7 Mpa
Air pressure	5-8bar
Washing medium	Aseptic water
Pressure of washing	>0.06Mpa <=0.2Mpa
Power (kw)	6.2	7.8	10	13
Weight (kg)	7500	8500	9000	9500

Electric configuration

1	Motor	ABB / Swizerland
2	Electric protection switch	Schneider / Germany
3	Circuit breaker	Siemens / Germany
4	PLC	Mitsubishi / Japan
5	Touch screen	Siemens / Germany
6	Transducer	Turck / Germany
7	Photoelectricity switch	Banner / USA
8	Pneumatic element	Festo / Germany
9	Contactor	Siemens / Germany
10	Converter	Mitsubishi / Japan

Option machines

Online cap washing system

Including: cap tunnel, stainless steel frame, washing head, two sets of washing pump and two sets of recycling tanks in stainless steel 304.

Cap elevator

Air consumption:0.3kg

Air blower: 0.25kw

Rotary: 2800rpm

Power:0.18kw

Rotary:1360rpm

Machine size: 600*600*1800mm

Weight:150kg

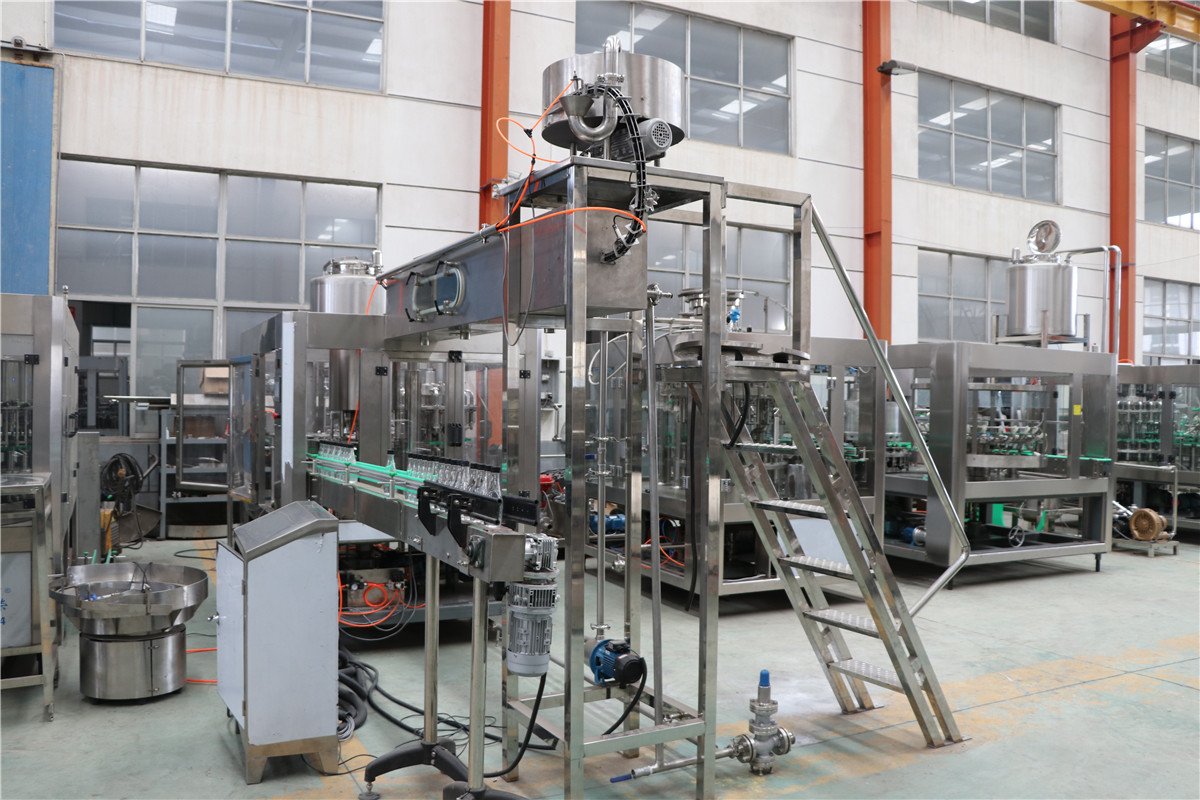

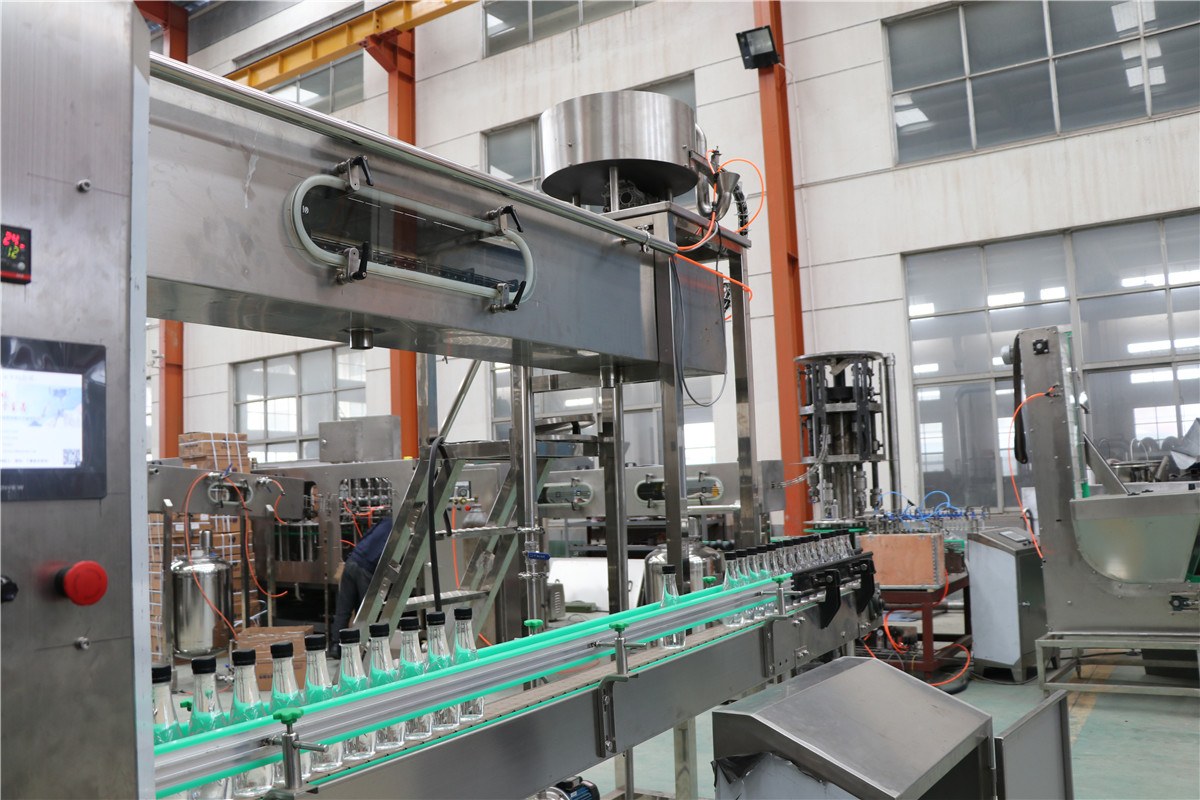

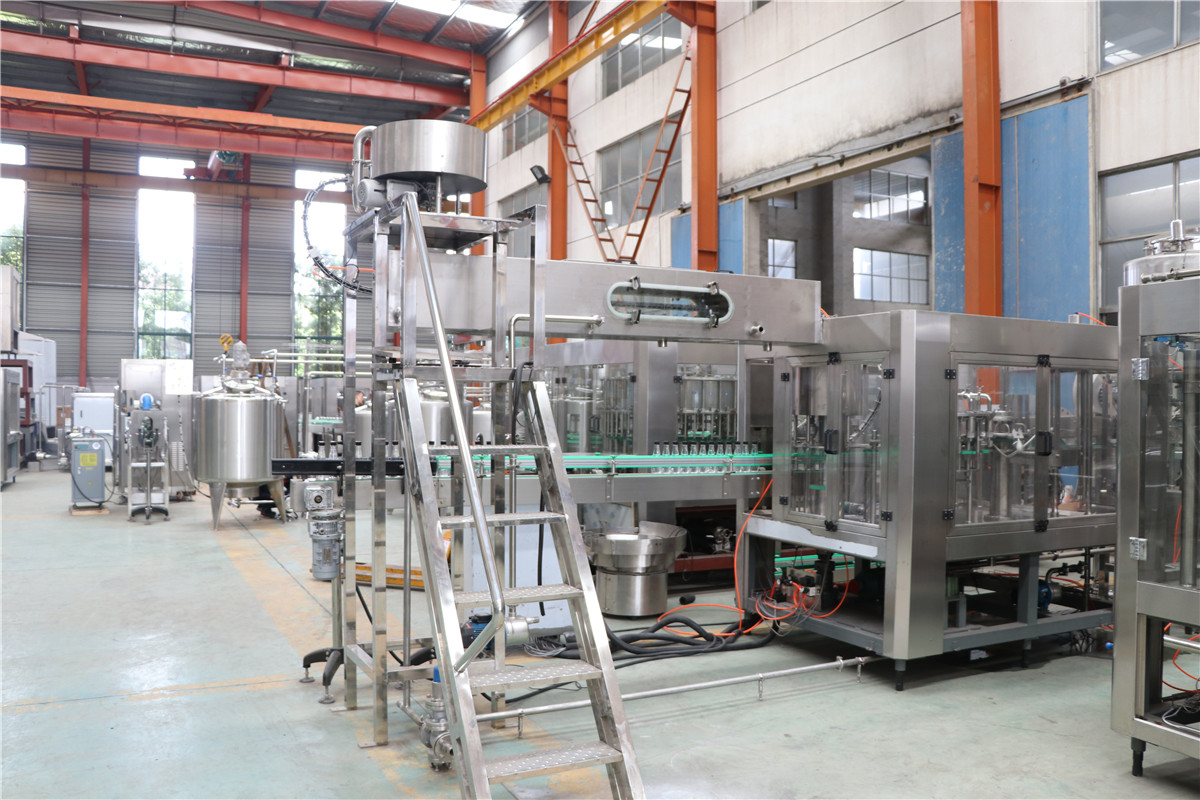

Detailed photo for ref

Piston Vacuum Milk Bottle Filling Machine Medium Size With Belt Conveyor
