PET Bottle Juice Hot Filling Production Machine RCGF 18-18-6
General information
| Machine type | Monoblock washing - filling - capping in one machine |
| Filling liquid | Fresh juice |
| Juice type | Concentrate juice |
| Capacity | 0 - 6000BPH / Customized basing on the requirement |
| Filling range | 330ml-1500ml |
| Bottle type | Plastic bottles which can bear hot temperature |
| Cap type | Plastic screw caps |
Description
Juice hot filling machine is to fill juice into plastic bottles in high temperature. The bottle should be bear the hot temperature; The system should keep the temperature while juice flowing through the filling machine. Finally, the whole sysytem should have the CIP cleaning connection to make sure the hygiene.
The complete juice production line include:
Juice processing system UHT sterilizing
V ^ V
Air conveyor > Monoblock filling machine (including the recycling system) > Light Checker > Bottle inverse machine > Pasteurizer tunnel > Labeling machine > Date printer > Final package machine
Technical specification
| Model | RCGF 18-18-6 |
| Capacity | 6000 BPH for 500ml bottle |
| Suitable bottle | PET round or square |
| Filling liquid | Fresh juice without pulp |
| Filling temperature | 85-90 degrees Celsius |
| Bottle diameter | 50-115 mm |
| Bottle height | 160-320 mm |
| Washing head | 18 |
| Filling head | 18 |
| Capping head | 6 |
| Air consumption | 0.5CBM / min |
| Air pressure | 6-8 bar |
| Total power | 4.4 kw |
Features
| Machine structure |
There a return system along with the juice filling machine; once the juice temperature is lower than 85 degrees Celsius, it will be returned to UHT for sterilizing again New type: round smooth corner, Arm controller installed on the machine
Monoblock high speed 3 in 1 washing - filling - capping unit
|
| Material |
Juice touch parts are stainless steel 304 or 316L Frame material is stainless steel 304, the thickness is 1.5mm
The machine table is carbon steel, we add more poles under the table
Bushes are changed to imported brand which is free lubricate
All parts are manufactured in more precise |
| Each unit features |
Washing Part: The bottle head gripper in SUS 304 / 316L, ensure minimal bottle crash during washing
Filling Part: All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Capping Part: No bottle no capping
|
| Additional function |
Install central lubrication system
Automatic lifting system for different height
|
Design team
We manufacture every set of equipment with 100% attentation. We keep promise to every client using best quality of material, advanced technology, and famous bead of accessories such as PLC, motor, etc. In addition, if you have any questions of our machine, please kindly to let us know.
After sales
We offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

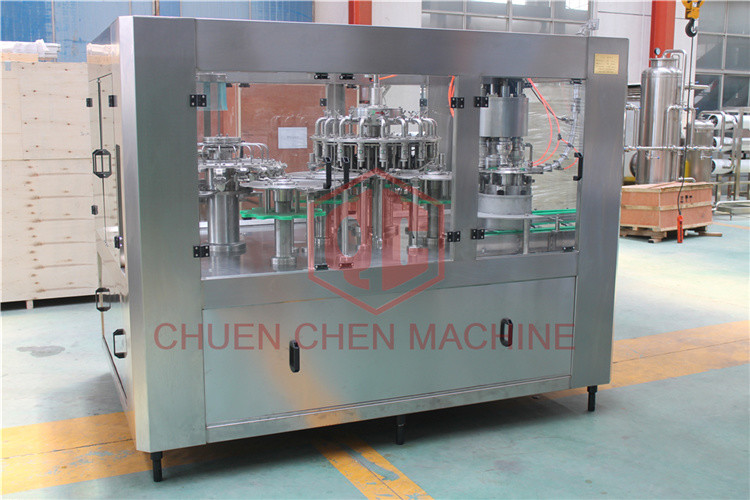

Detailed photo for ref
