Prepared Juice Bottle Filling Capping Labeling Machines Monoblock Three In One

Name: Prepared Juice Bottle Filling Capping Labeling Machines Monoblock Three In One
Brand: Ellison
Price: 1 USD

Buy cheap Prepared Juice Bottle Filling Capping Labeling Machines Monoblock Three In One product

Brand Name : Ellison

Model Number : RCGF 18-18-6

Certification : CE/ BV / ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiated

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 8 sets per month

Delivery Time : 30-35 working days

Packaging Details : Wooden case or pallet package

Processing type : Juice filling machine

Capacity : 6000 BPH

Suitable bottle : Plastic bottle

Bottle type : 330ml-1500ml

Cap type : Plastic screw cap

Machine type : filling machine

Spare parts : Two years

Filling liquid : Hot juice

Contact Now

Plastic Bottle Hot Juice Filling Capping Machine 18 Head 6000BPH

General information

Machine type	Monoblock washing filling capping in one unit
Filling liquid	Hot juice
Juice type	Prepared Juice
Capacity	6000BPH / Customized basing on the requirement
Filling range	330ml-1500ml
Bottle type	Plastic bottles which can bear hot temperature
Cap type	Plastic screw caps

Description

Hot juice filling machine is to fill juice into plastic bottles. The bottles and machine will be suggested in high quality. First of all, the bottle should be bear the hot temperature; secondly, the temperature of juice flowing through the filling machine should keep the temperature. Thirdly, the whole system should have the CIP cleaning connection to make sure the hygiene.

The complete juice filling and packing line include:

Air conveyor > Monoblock filling machine (including the recycling system) > Light Checker > Bottle inverse machine > Pasteurizer tunnel > Labeling machine > Date printer > Final package machine

Technical specification

Model	RCGF 18-18-6
Capacity	6000 BPH for 500ml bottle
Suitable bottle	PET round or square
Filling temperature	85 degrees Celsius
Bottle diameter	50-115 mm
Bottle height	160-320 mm
Air consumption	0.5CBM / min
Air pressure	6-8 bar
Total power	4.4 kw

Electric configuration

PLC & Touch screen	Siemens / Mitsubishi
Transducer	Siemens / Mitsubishi / Schneider
Power	Schneider
Contactor	Schneider
Relay	Schneider
Light sensor	Omron / Autonics

Conveyor system
Air conveyor: Feeding plastic bottle to filling machine; it includes:
1, air blower
2, air filter screem
3, air conveyor tunnel
The belt conveyor system include:
1, Single row of conveyor: engineering plastic belt or stainless steel belt
2, Multi row of conveyor: engineering plastic belt or stainless steel belt
3, Conveyor motors: speed adjustable or stable speed with converter
4, Turn conveyor
5, Water accumulation tray
6, Cable try

Features

Machine structure	New type: round smooth corner, Arm controller installed on the machine There a return system along with the juice filling machine; once the juice temperature is lower than 85 degrees Celsius, it will be returned to UHT for sterilizing again Monoblock high speed 3 in 1 washing - filling - capping unit
Material	Frame material is stainless steel 304, the thickness is 1.5mm The machine table is carbon steel, we add more poles under the table Water touch parts are stainless steel 304 or 316L Bushes are changed to imported brand which is free lubricate All parts are manufactured in more precise
Each unit features	Washing Part: The bottle head gripper in SUS 304 / 316L, ensure minimal bottle crash during washing Filling Part: All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean Capping Part: No bottle no capping
Additional function	Install central lubrication system Automatic lifting system for different height

Contact information

Please write to us with below information for getting detailed quotation sheet quickly:

- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;

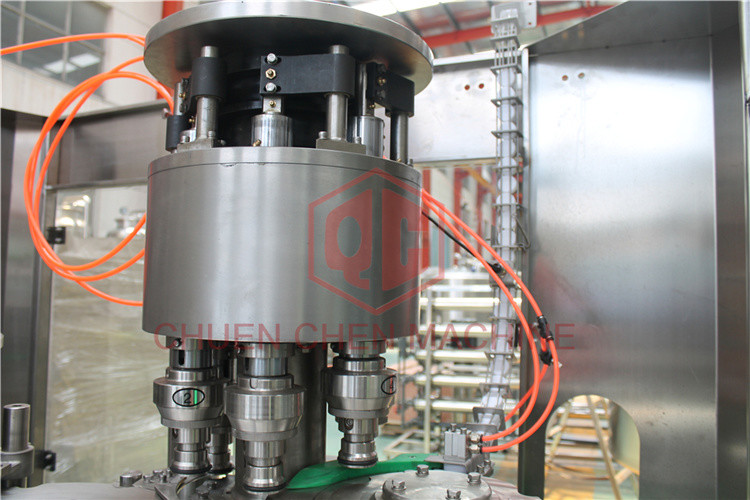

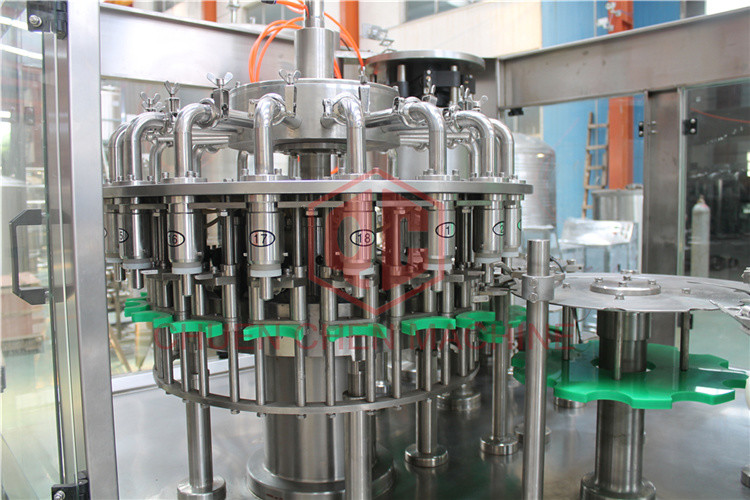

Detailed photo for ref
