Rotary Type Glass Bottle Ketchup Filling Machine / Monoblock Bottling Equipment
Description
Piston filler is suitable for all kinds of liquid, is use pneumatic plunger to increase pressure. Approach switch control plunger process to make sure filling correctness. It is widely used for sticky liquid filling. Applying with rotary bottle in style, it is suitable for different bottle shape and size including by changing star wheel.
Material
| Descriptipn | Material | Brand |
| Plate | Stainless steel 304 | ZPSS |
| Bearing | Stainless steel 304 | Self made |
| Bushed | Engineering plastic | IGUS |
| Washing clamps | Stainless steel 304 | Self design |
| Filling Valve | Stainless steel 304 | Nanjing |
| Machine table | Carbon steel | Daming |
Working principle
Makes the reciprocal motion through in the air cylinder around movement impetus material cylinder piston, thus causes the material cylinder front cavity to have the negative pressure. When air cylinder forward movement, Draws the piston backward, The material cylinder front cavity has the negative pressure. Is pressed in for the feeding trough in material by the atmospheric pressure the inlet pipe, Enters the material tube through the turnover material cone-way valve. When air cylinder backward movement,Impels the piston to forward,Extrusion material. The material through leaves the material cone-way valve to enter the material hose, Finally through fills the pattern enters treats fills the spatial bottle (when feeding fills the pattern closure, Leaves when the material opens), Completes one time to fill the attire. The plunger-type racking machine regarding each time fills the attire is a mechanical sole simple movement,Therefore all has to each regular vessel very high fills installs the precision and the stability.
Electric configurations
| PLC / Touch screen | Siemens / Mitsubishi |
| Contactor / Relay | Schneider |
| Power | Schneider |
| Light sensor | Autonics / Omron |
| Motor | ABB / Siemens / Domestic brand |
| Pump | Nanfang pump which is one of the best in China |
Filling method
1, The filling volume is controlled by volume, is quite precision, when the container is arriving at the set position, the plunger will generate precision pressure;
2, When there is foam generate during filling, the filling method can be adjusted, the filling head can go into bottle bottom to fill; 3, The machine is set with automatic absorbing system, the extra liquid will be absorbed into filling head, no liquid will be outside of bottle and in filing machine;
3, Precise control: 1, Precision: ±1% 2, No bottle, no filling

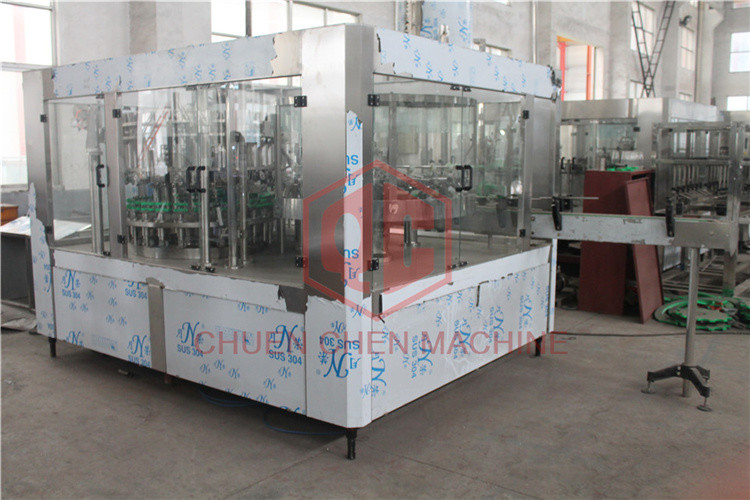

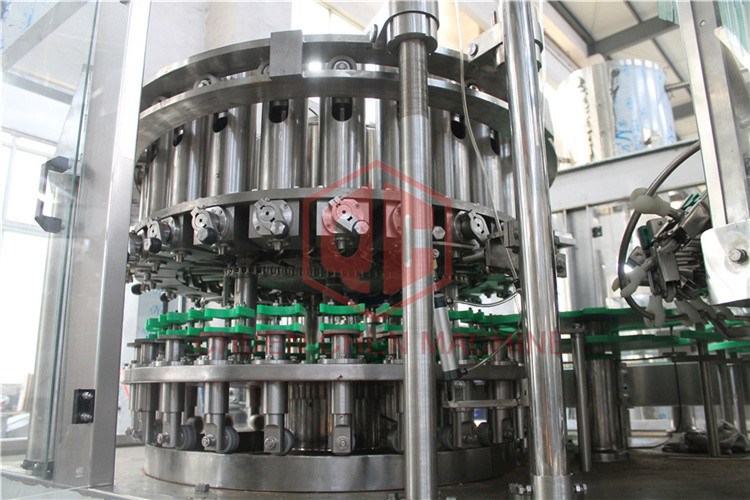

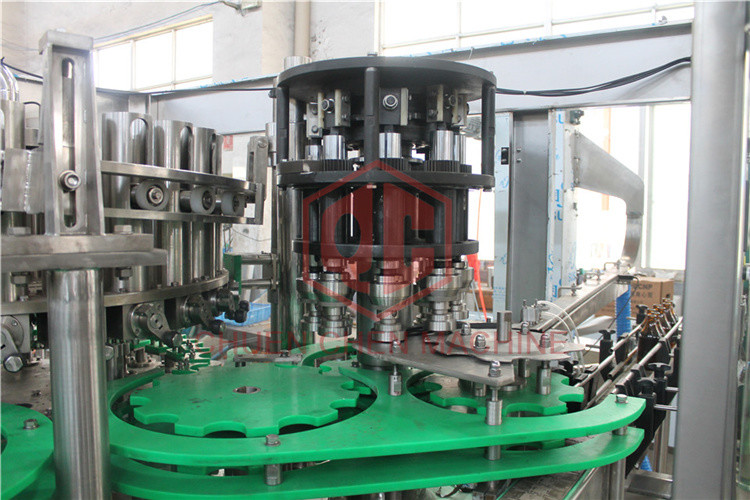

Detailed photo for ref
