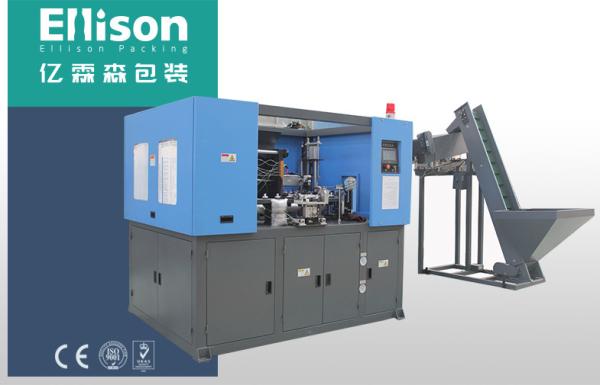

Automatic 4 Cavity PET Bottle Blow Molding System 500ml mould
General information
| Project name | Full automatic PET bottle blow molding machine |
| Bottle type | 100ml - 2000ml bottle |
| Bottle material | PET |
| Capacity | 4000 pcs per hour |
| Bottle type | Will be designed basing on the requirement |
| Auxiliary machines | Full set |
Description
Blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Auxiliary machines
| Description | Model |
| Bottle mould | 100ml - 2000ml |
| High pressure air compressor | 2.5m3/30mpa |
| Low pressure air compressor | 1.6m3/30mpa |
| Air filter | 2.0m3/10mpa |
| Water chiller | 5HP |
| Air storage tank | 0.6m3/30mpa |
| High pressure connection pipes | 2.0m3/30mpa |
| Air dryer | 2.0m3/30mpa |
Features
1). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
2). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
3). Introduce the FESTO air cylinder to avoid contamination and noise.
4). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
5). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
6). Ideal cooling system make the finished bottles without any flaws.
7). Easy for you to install,test and start up.
8). Low rejection rate: less than 0.2 percent.
Configuration
| Pneumatic part | Valve | SMC |
| Cylinder |
| Electric part | PLC | LG |
| Operating system | LG |
| Relay | OMRON |
| Infrared thermometer | America raytek |
| Note | All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product. |

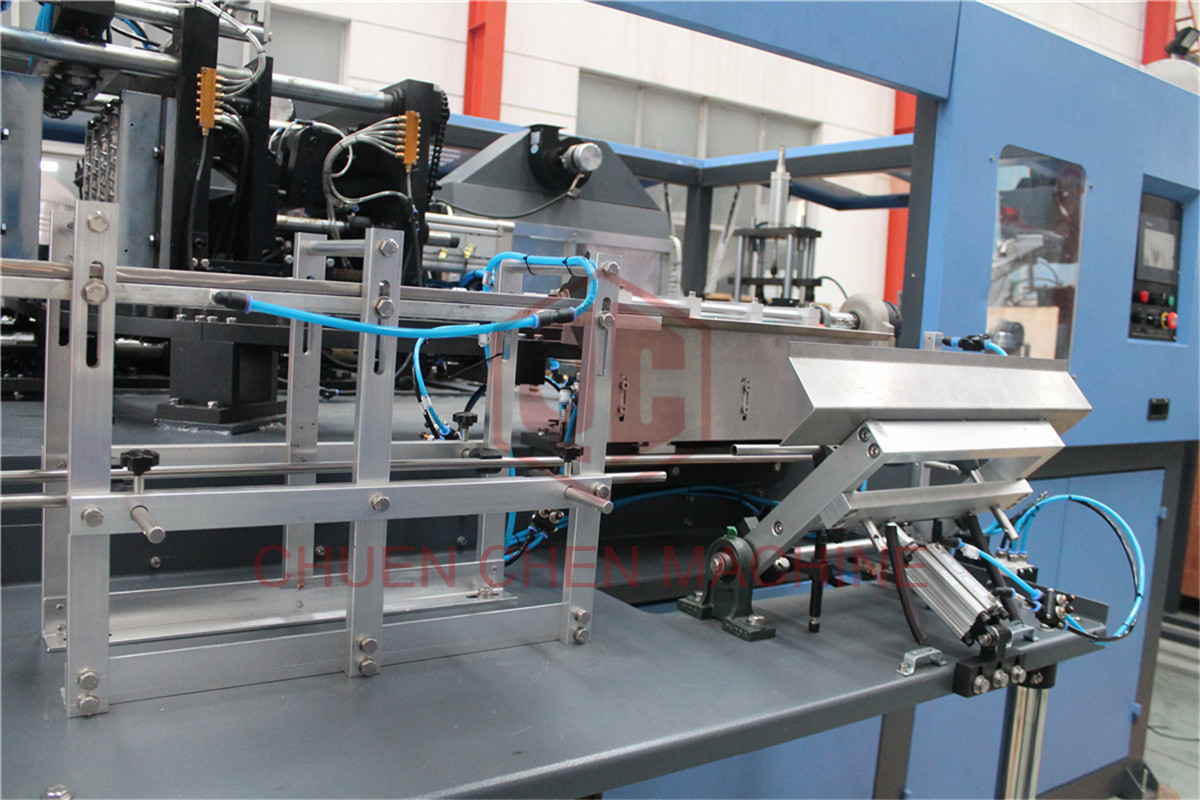

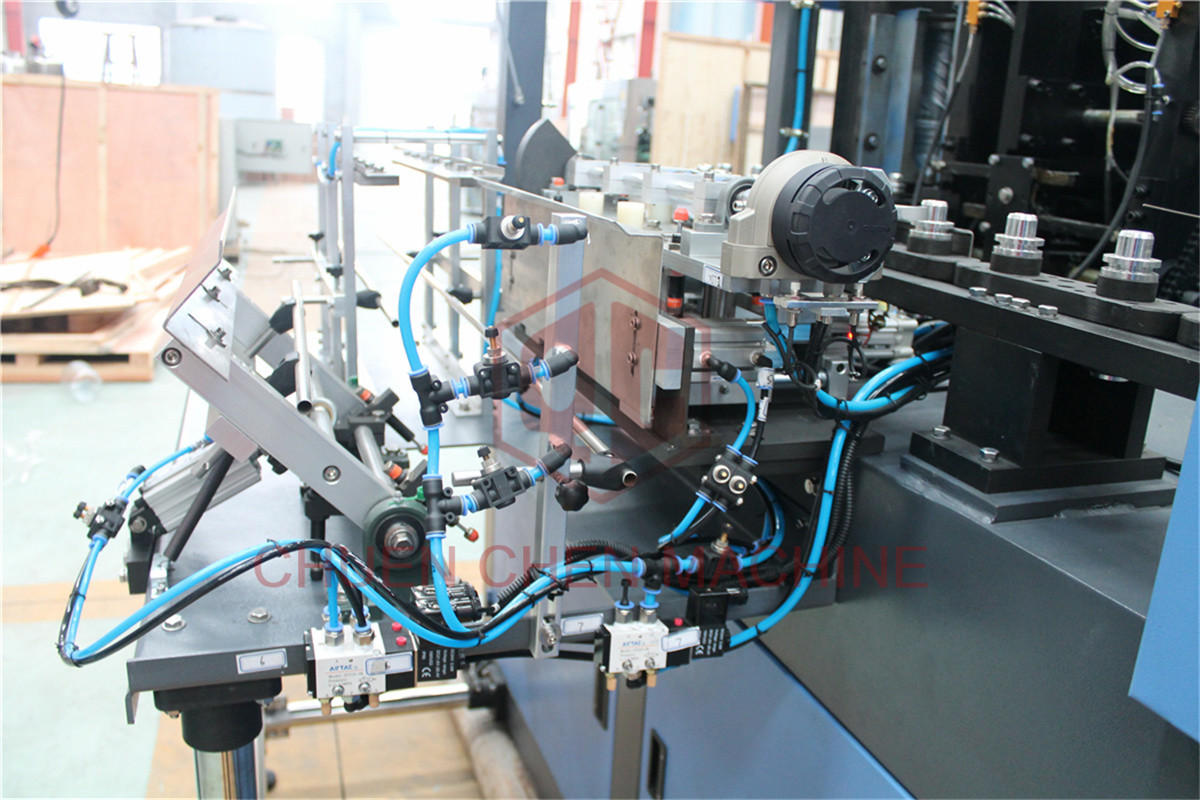

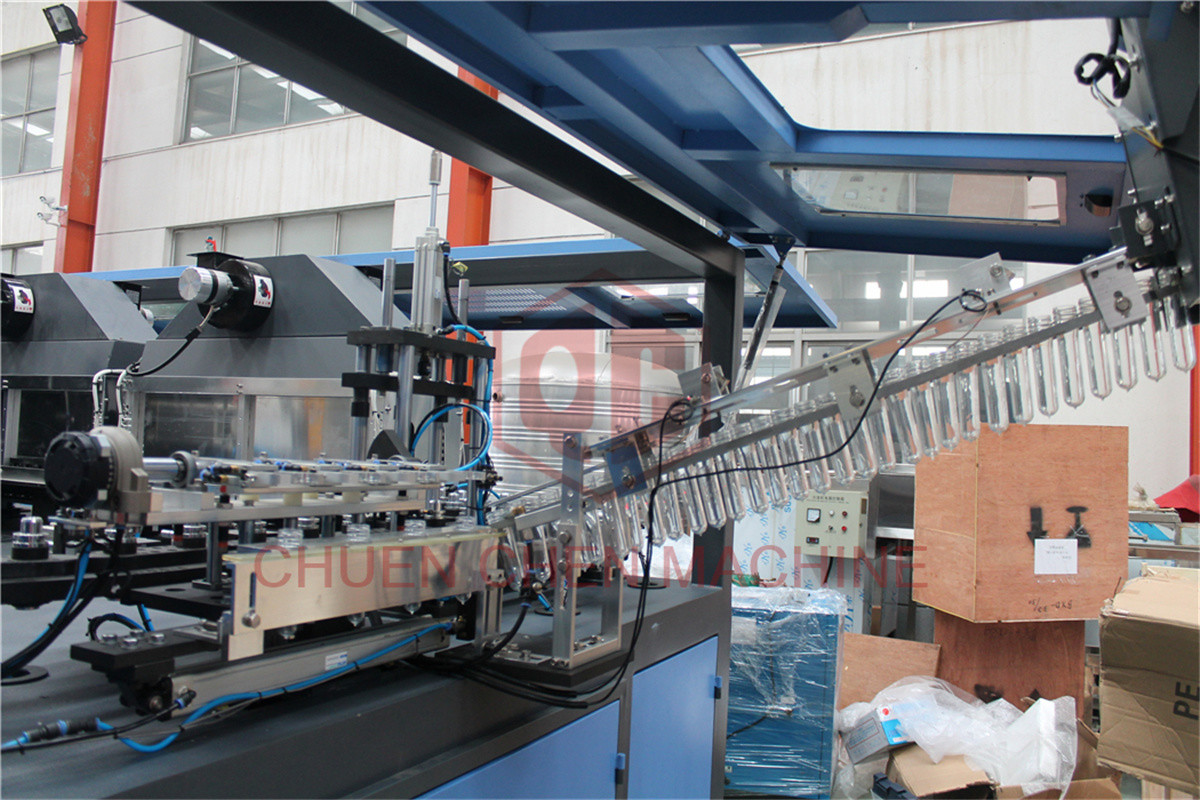

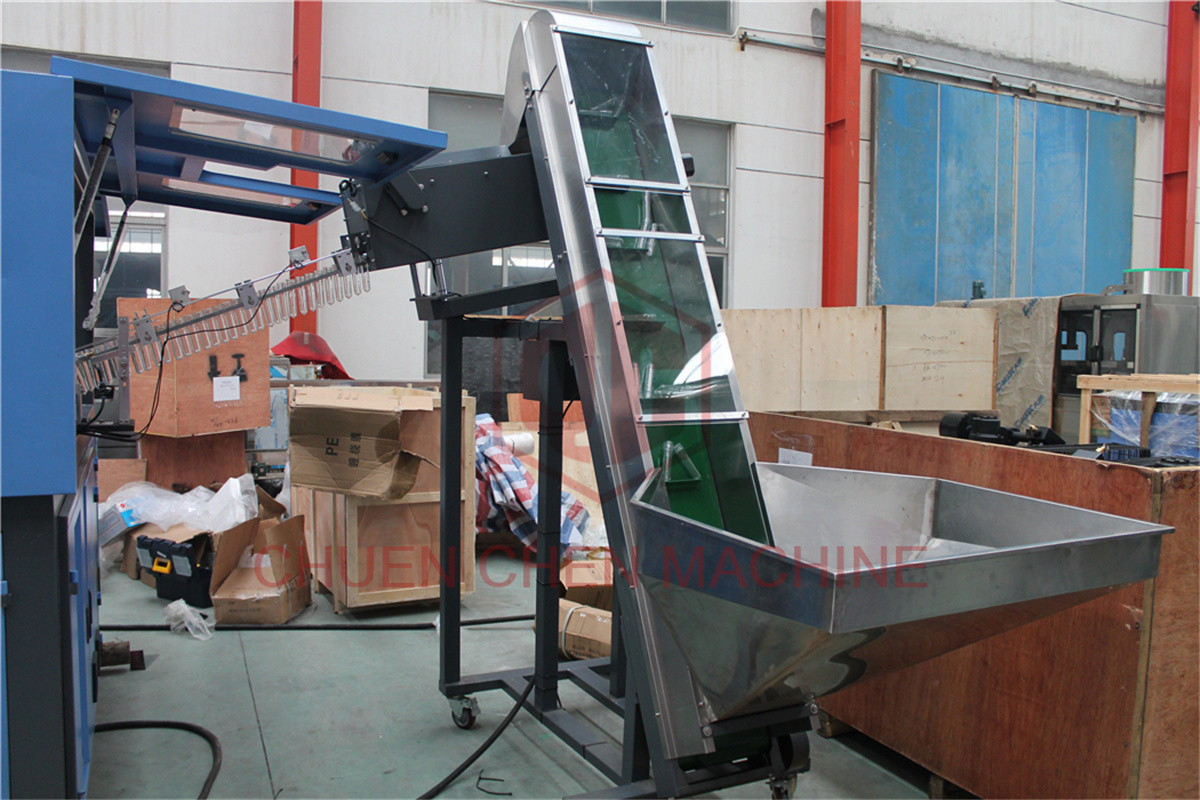

More photos for ref
