800 - 1000 BPH Automatic Craft Beer Filling Bottling Machine BCGF 12-12-5
Project information
| Project name | Beer bottling machine |
| Production capacity | 800-1000 BPH |
| Bottle type | 500ml Glass bottle |
| Cap type | 26mm Crown cap |
| Filling pressure | Back up pressure 0.2 - 0.3Mpa |
| Machine model | BCGF 12-12-5 |
| Power consumption | 2.2 kw |
| Machine size | 2500 x 1900 x 2500mm |
| Cap elevator | Tilt type |
| Power | 0.18kw |
Machine description
1, Glass bottling machine: the filling valve is special designed for beer filling due to the feature of beer is easily foaming;
2, The anti-foaming system will be adopted if needed. The principle of this machine is to inject water into bottles by high pressure;
3, Regarding the glass bottle type , it's better to use one type; If need more bottle types, it's better to use same diameter;
4, Beer filling valve will be open two time before filling;
5, Beer inlet pump will be suggested to use diaphragm valve;
Specifications
| Descriptipn | Material | Brand |
| Plate | Stainless steel 304 | ZPSS |
| Bearing | Stainless steel 304 | Self made |
| Bushed | Engineering plastic | IGUS |
| Washing clamps | Stainless steel 304 | Self design |
| Filling Valve | Stainless steel 304 | Nanjing |
| Machine table | Carbon steel | Daming |
Auxiliary machines for filling machine
| Cap elevator | Cap sorter |
| Anti-foaming system | Bottle beer pasteurizer tunnel |
| Cleaning room | Bottle washing tunnel after sealing |
| Bottle dryer | Stick labeling machine |
| Date printer | Package machines |
Electric configurations
| PLC / Touch screen | Siemens / Mitsubishi |
| Contactor / Relay | Schneider |
| Power | Schneider |
| Light sensor | Autonics / Omron |
| Motor | ABB / Siemens / Domestic brand |
| Pump | Nanfang pump which is one of the best in China |
Shipping issue
- Most of the shipping are transported by sea;
- We will help to pack the machine by standard export wooden case;
- We will help to book the shipping date;
- We will help to ship the machine to the port warehouse;
- We will help to make the clearance of goods in domestic;
- We will help to send you the clearance documents;
- We will help to track the machine where it is now;
Contact information
Please write to us with below information for getting detailed quotation sheet quickly:
- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;

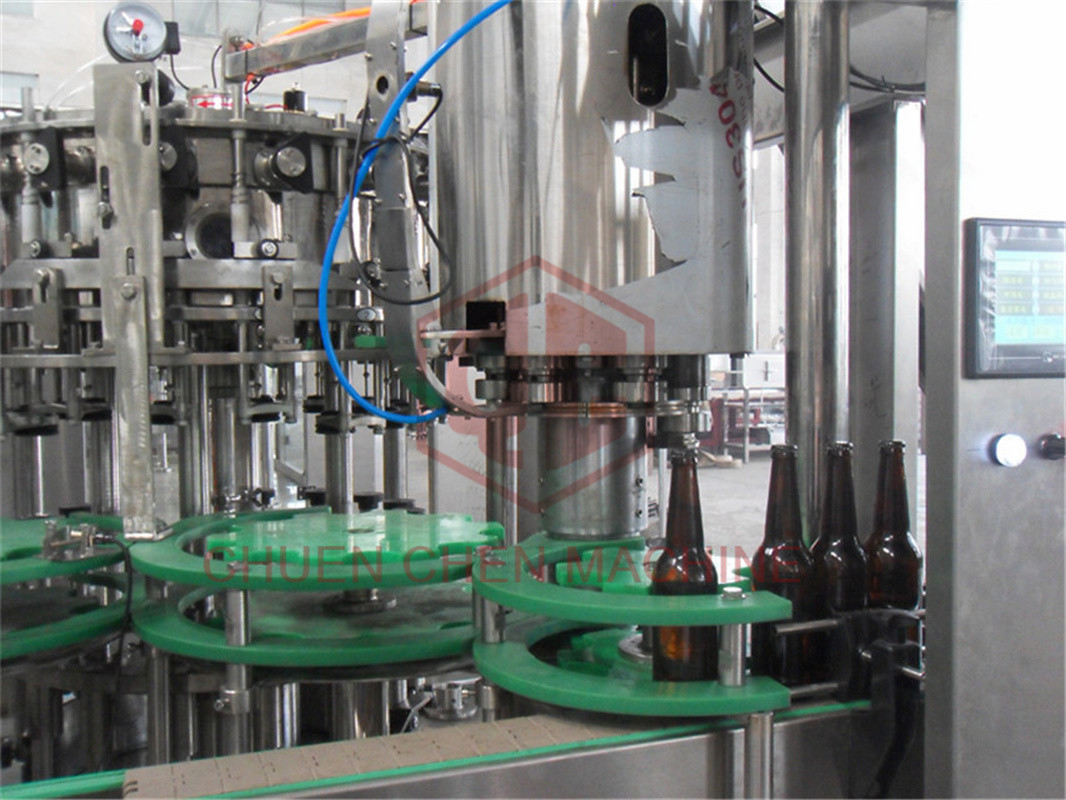

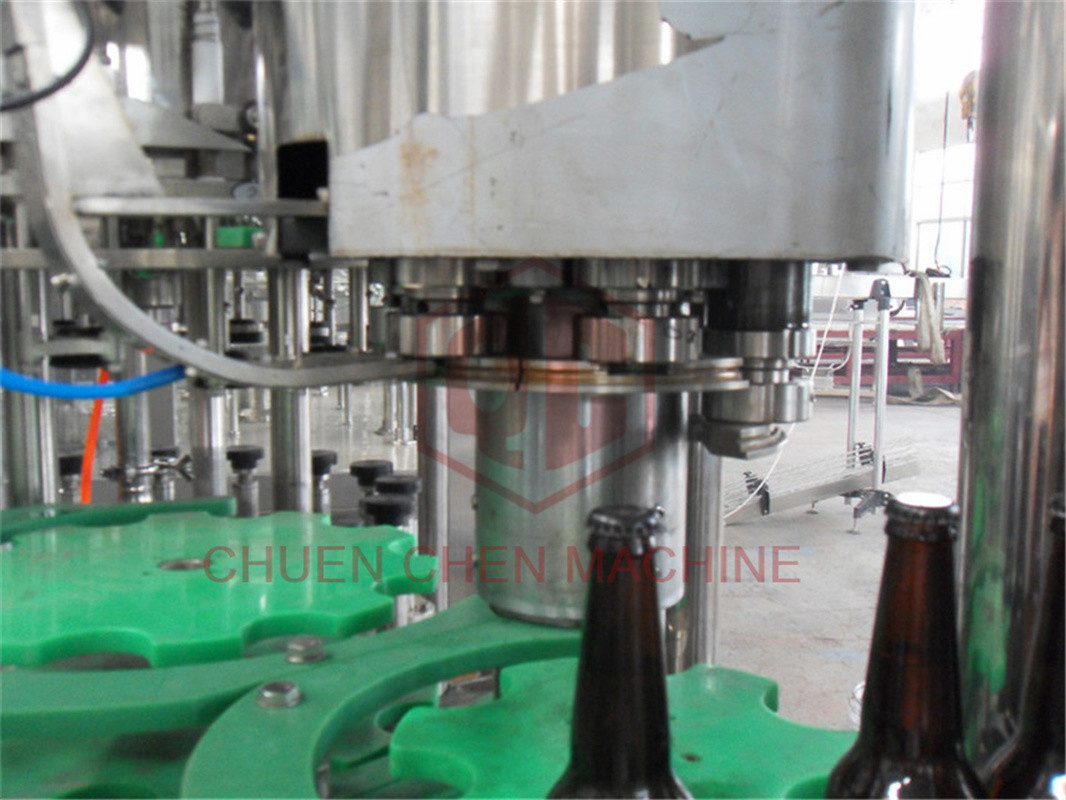

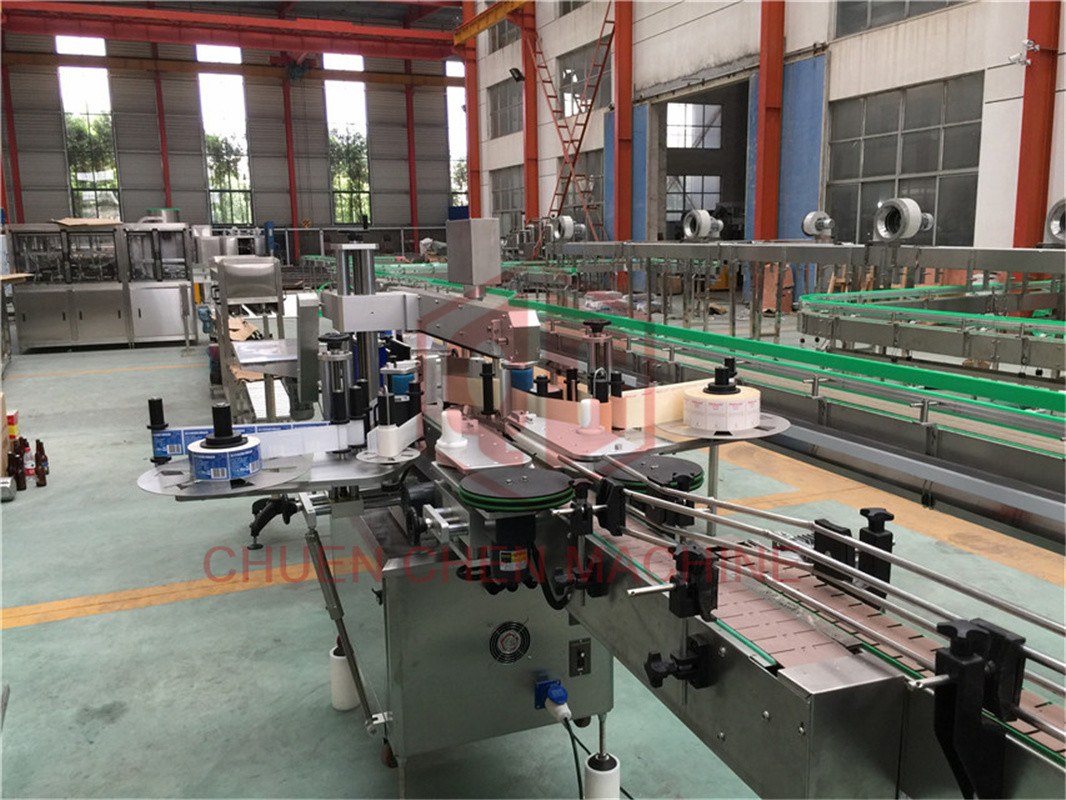

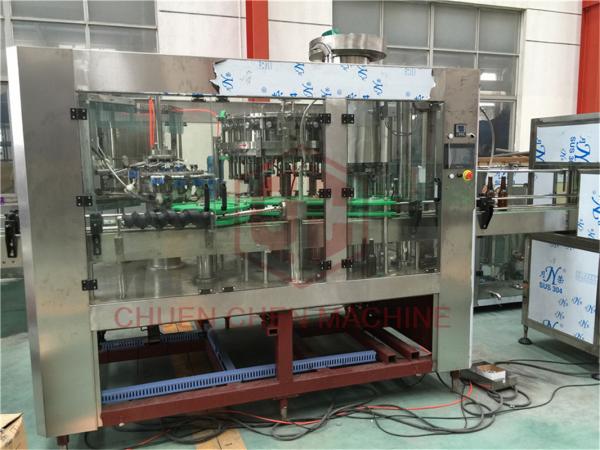

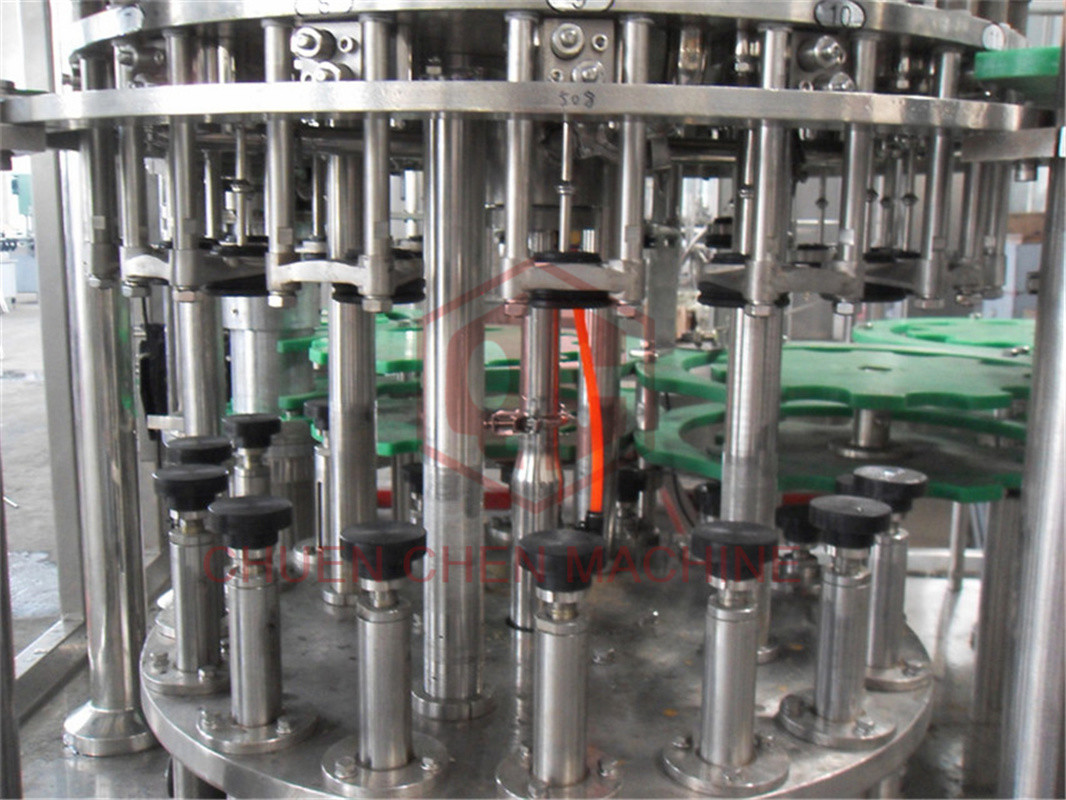

Detailed photo for ref
