High Ratio Carbonated Drink Production Line / Soda Processing Machine
Description
This carbonated drink production machine is used to make carbonated drink, soft drink, soda, carbonated water etc. The key part is the CO2 mixing machine. Including syrup melt pot, mixing tank, double filter, CO2 mixer etc. Then packed into glass bottles, plastic bottles, metal cans and another containers.
Complete system
| Steam boiler | > | Hot water tank | > | Syrup melting pot |
| | | V | | V |
| CIP cleaning system: will connect to pipe for washing | | V | > | Mixing tank # 1 |
| | V | > | Mixing tank # 2 |
| | | | | V |
| CO2 mixing machine | < | Degassing tank | < | Double filter |
| V | | | | |
| Filling machine | > | Packing machines | | |
Specifications
| CO2 mixer | Degassing tank Carbonation tank Heat exchanger Industrial chiller Electric cabinet |
| Hot water system | Jacket hot water tank 2000L stainless steel 304 (diameter: 1600; total height: 2500mm; thickness: (inside/middle/outside): 2.5mm/50mm/2mm Plate heat exchanger 8m2 Steam diaphragm valve Steam reducing valve Steam filter Drain valve Pressure meter Temperature sensor High and low liquid leveler |
| Syrup melting pot | Homogenizer Lever gauge Thermal meter Liquid inlet Liquid outlet Drain hole Respirator Heating pipe |
| Mixing tank | Mixing agitator Lever gauge Thermal meter Liquid inlet Liquid outlet Drain hole Respirator |
| Plate and frame filter | Capacity:1-3/h Filter area:0.15m2 Precision: 120um Working pressure:0.2Mpa Inlet/outlet:DN38 Dimension:950*550*600mm |
Installation and commissioning
All the machines reach to the workshop of customer, locate all equipments according to layout we offered. We will dispatch technician for equipment installation and commissioning at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
How to get a quotation?
Please write to us with below information for getting detailed quotation sheet quickly:
- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;
More photos for ref

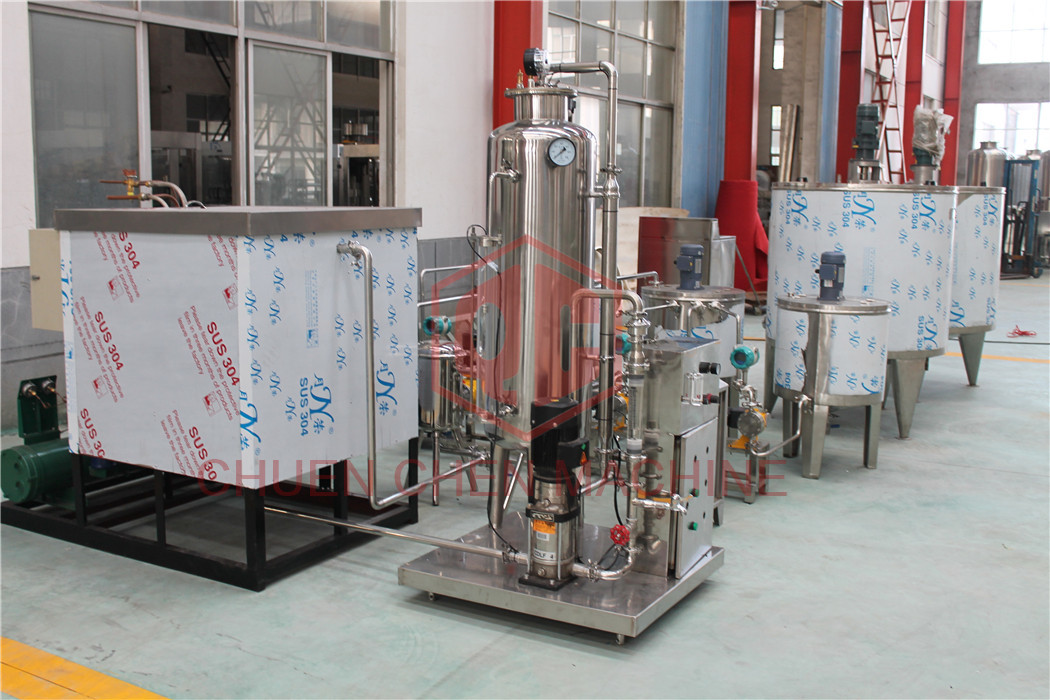

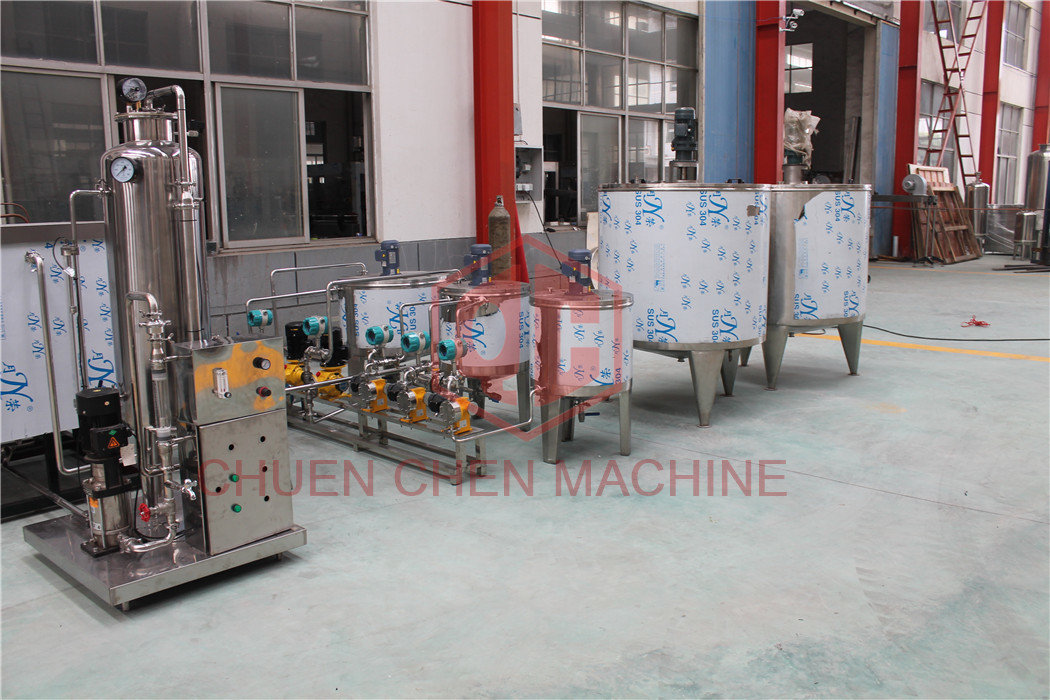

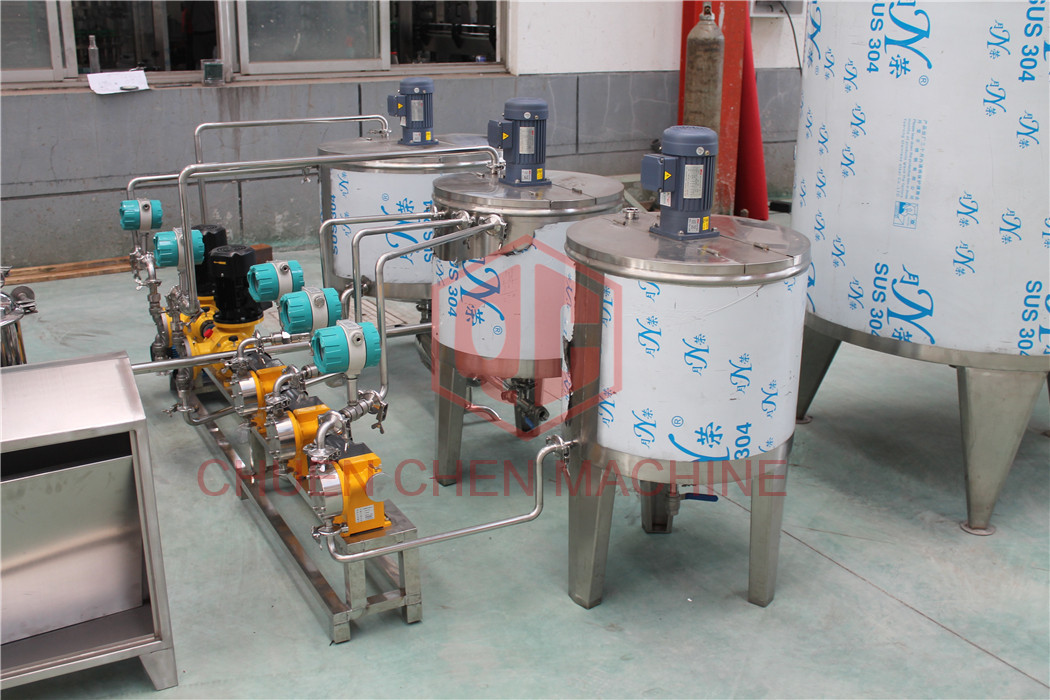

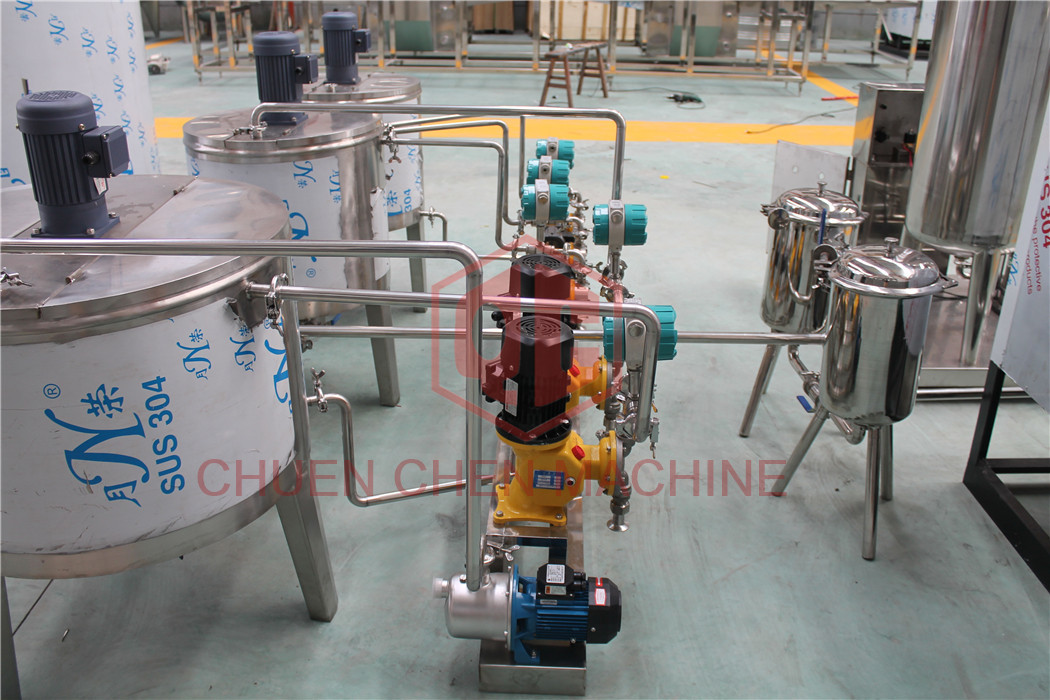

NOTE: Below photos are taken from factory.
